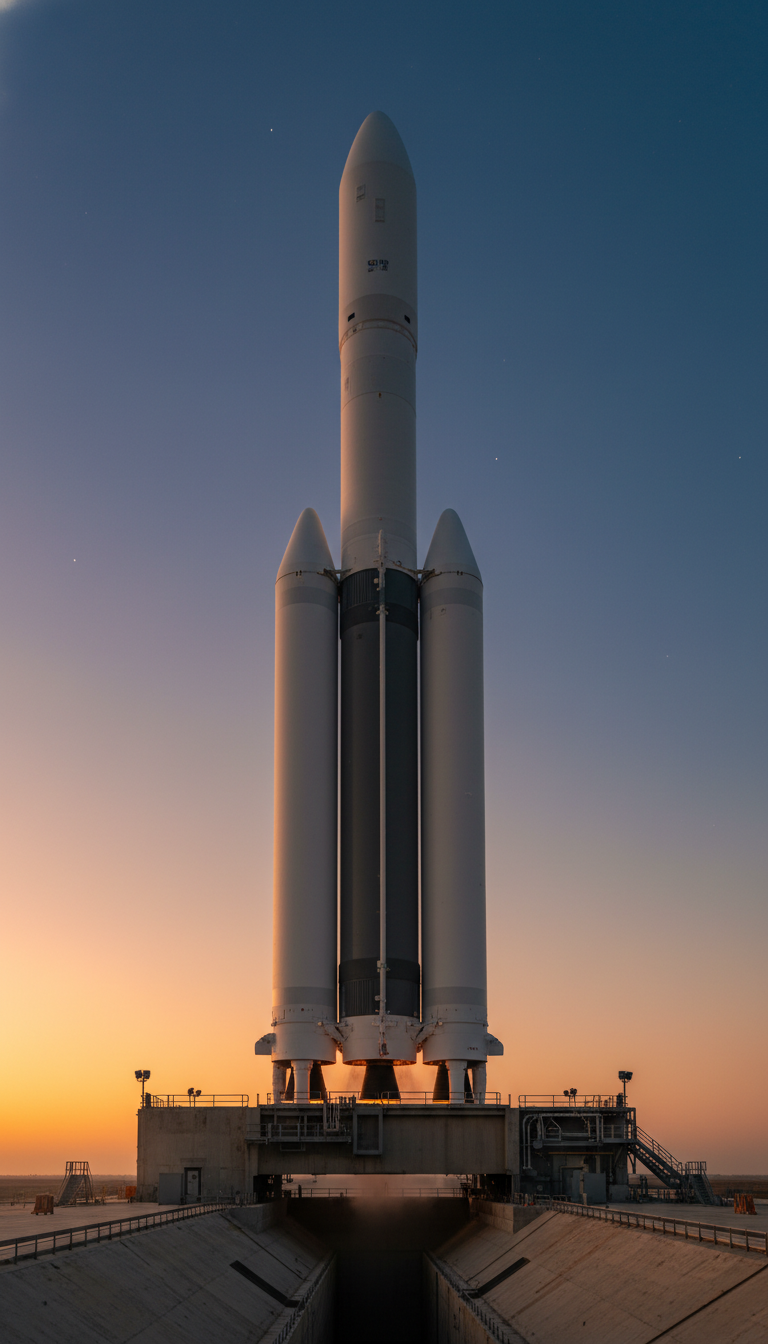

Heavy Lift Vehicle
VANGUARD-2
HEAVY
Triple-core configuration delivering heavy payloads to LEO, GTO, and beyond. Side boosters are recoverable for cost-effective high-energy missions.
48 m
Height
3 cores
Boosters
1,500 kg
Payload to LEO
650 kg
Payload to GTO
Technical Overview
Core Stage & Boosters
ConfigurationTriple-core (CBC + 2 side boosters)
Engines per core5× OEX-2 (staged combustion)
Total liftoff thrust2,175 kN
PropellantLOX / RP-1
Booster separationT+142 s
Booster recoveryPropulsive RTLS
Upper Stage
Engines1× OEX-2V (vacuum optimized)
Thrust (Vac)160 kN
Burn Time520 seconds
RestartsUp to 4 in-flight
Fairing3.4 m diameter, composite
Payload adapterMulti-manifest capable
Mission Profiles
LEO (500 km)
Payload
1,500 kg
SSO (600 km)
Payload
1,100 kg
GTO
Payload
650 kg
MEO
Payload
900 kg
HEAVY PAYLOAD? WE HAVE YOU COVERED.
Get a mission quote for your heavy-lift requirements.
Request Quote
